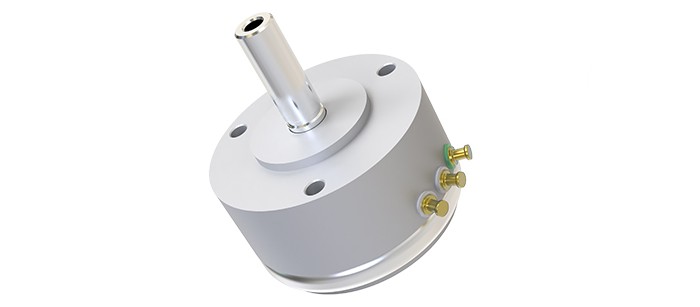

SENTOP WDD35D4 1K/2K/5K/10K Conductive Plastic Precision Potentiometer
Description
The WDD35D4B conductive plastic potentiometer is an advanced electronic component renowned for its precision and durability across a wide range of applications. Engineered with state-of-the-art materials and manufacturing techniques, it offers exceptional reliability and performance consistency in demanding environments.
Characterized by its high-resolution angular position sensing capabilities, the WDD35D4B ensures precise control over voltage or resistance levels, making it ideal for applications requiring accurate feedback and control. Its construction from durable conductive plastic materials enhances longevity and operational reliability, capable of withstanding challenging conditions without compromising performance. Designed for versatility, the WDD35D4B potentiometer supports various mechanical configurations and shaft styles, including splined, knurled, and slotted variants, to accommodate diverse application requirements. It maintains stable performance across a wide temperature range, ensuring reliable operation in both extreme cold and heat.
The potentiometer's friction-free design and low electrical noise characteristics contribute to smooth and responsive operation, critical for applications demanding precise motion control and signal accuracy. Its robust design and customizable options for resistance values further enhance its suitability across industrial automation, medical equipment, aerospace, defense, and consumer electronics sectors. In conclusion, the WDD35D4B conductive plastic potentiometer stands as a benchmark for reliability, precision, and versatility in electronic control applications, providing engineers with a dependable solution for achieving optimal performance and efficiency in their designs.
Feature
• Compact.
• Long life.
• High following characteristics.
• High resolution (Essentially infinite).
• RoHS compliant.
• Conductive plastic single turn type.
Specification
| Electrical Characteristics | Standard Resistance Range | 1KΩ~10KΩ |
| Resistance Tolerance | ±1%(precision)±15%(Standard) |
| Independent Linearity | ±0.1%(precision)±1%(Standard) |
| Effective Electrical Travel | 345°±2%(Customized angle is available) |
| Insulation Resistance | ≥ 1000MΩ(500VD.C) |
| Dielectric Strength | 1000V(AC.RMS)1min |
| Output Smoothness | ≤±0.1% |
| Environment Characteristics | Rated Power | 70°C, 2W |
| Temperature Range | -55 ℃ ~ +125 ℃ |
| Temperature Coefficient | ±400 ppm/°C |
| Vibration Dynamic | 15G 2000 Hz |
| Mechanical Life | 50,000,000 RPM |
| Shock | 50G 11ms |
| Physical Characteristics | Total Mechanical Travel | 360° (endless) |
| Starting Torque | ≤10*10^-4 N·M |
Dimension
Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging
Packaging specification: 1 piece / inner box, 12 pieces / small box, 120 pieces / middle box.
Application
• Network communication equipment.
• Instrument equipment.
• Industrial machinery equipment.
• Medical equipment.
• Injection molding machines.
• Crane torque control.
• Valves.
• Pedal testing.
• Robotic arms.
• Pan tilt control.
• Papermaking machinery.
• Textile machinery.
Advantage
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH,etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
