BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

Name: BOCHEN Precision Potentiometer WXD211 Panel and PCB Mount Wirewound Rotary Pot
Brand: BOCHEN
Price: 2.50 USD

Quality BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot wholesale

Brand Name : BOCHEN

Model Number : WXD3-11

Certification : RoHS, Reach

Place of Origin : Chengdu

MOQ : 100 Pieces

Price : $2.50 - $5.00/Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 3,000,000 Pieces Per Month

Delivery Time : 1-7 Workdays

Packaging Details : 10 Pieces Per Box

Product Name : WXD3-11 5k Ohms 5% Lin 0.3% Multiturn Wirewound Potentiometer For Test And Lab Equipment

Product Type : Wirewound potentiometer

Termination Style : Solder Lug

Standard Resistance Range : 100Ω~50KΩ

Resistance Tolerance : ±5%

Independent Linearity : ±0.25%

Effective Electrical Travel : ≥3600°-10°

Total Mechanical Travel : 3600°±10°

Temperature Range : -55℃~+125℃

Temperature Coefficient : ±100ppm/℃

Contact Now

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

Description

The BOCHEN WXD2-11 Wirewound Potentiometer is a high-precision, multi-turn component designed for accurate resistance control in industrial and laboratory applications. Built with a durable wirewound resistive element and gold-plated brass terminals, it ensures long-term reliability and stable electrical performance under demanding conditions.

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

Key Features

✔ Multi-Turn Design: Available in 3, 5, and 10 turn configurations for precise control
✔ High Linearity: Independent linearity of 0.25%, ensuring accurate resistance adjustments
✔ Wide Ohmic Range: Resistance values from 100Ω to 50KΩ with a ±5% tolerance
✔ Temperature Stability: Operating range of -55℃ to +125℃, with a low temperature coefficient of 100ppm/°C
✔ Mounting Options: Standard bushing mount with optional servo mount for diverse applications
✔ Versatile Installation: Panel mounting and PCB mounting options available

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

With a power rating of 1W, the WXD3-11 potentiometer is engineered for precise voltage and signal control, making it an essential component for critical electronic systems.

Specification

Electrical Characteristics	Nominal Resistance Range	100Ω~50KΩ
	Resistance Tolerance	±5%
	Independent Linearity	±0.25%
	Effective Electrical Travel	≥1800°-10°
	Terminal Resistance	≤0.2%R or 5Ω
	Noise	≤3%R or 3Ω
	Insulation Resistance	RI≥1GΩ
	Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Environment Characteristics	Rated Power	1W@+70℃, 0W@+125℃
	Temperature Range	-55℃~+125℃
	Temperature Coefficient	±100ppm/℃
	Temperature Variation	ΔR≤2%R, Δ(Uab/Uac)≤±1%
	Vibration	390m/s², 4000cycles, R≤±1%R
	Collision	10-500Hz, 0.75mm,or 98m/s², 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
	Climate Category	ΔR≤±3%R, RI≥100MΩ
	Electrical Endurance At 70°C	2W, 1000h, ΔR≤±3%R
	Rotational Life	10000 cycles, ΔR≤±3%R
	Steady Damp Heat	ΔR≤±3%R, RI≥100MΩ
Physical Characteristics	Total Mechanical Travel	1800°±10°
	Starting Torque	≤36mN·m
	Clutch Torque	≤300mN·m

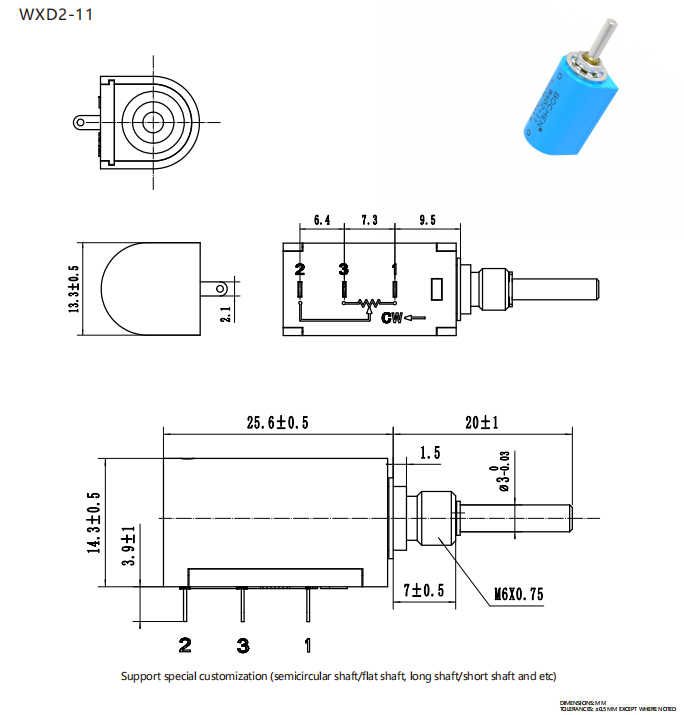

Dimension

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

Packaging

Packaging specification: 20 pieces per box.

Applications

1. Test & Laboratory Equipment

Integral to calibration instruments, signal generators, and measuring devices
Ensures accurate tuning and resistance adjustments

2. Industrial Automation

Used in motor controllers, automation systems, and process control
Provides precise positioning and voltage regulation

3. Medical Equipment (Non-Life Support)

Applied in diagnostic instruments, imaging devices, and monitoring systems
Ensures stable and precise control of electrical parameters

The BOCHEN WXD2-11 wirewound potentiometer delivers exceptional performance, high precision, and durability, making it a trusted choice for professionals in industrial, laboratory, and medical applications.

BOCHEN Precision Potentiometer WXD2-11 Panel and PCB Mount Wirewound Rotary Pot

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
